Builder

Showing 55–63 of 68 results

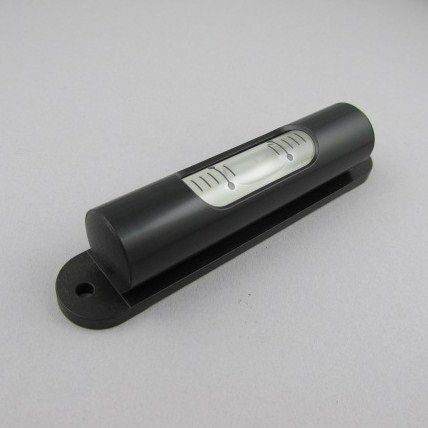

  • 4-3016

    4-3016

    Drawing Available

    Sensitive plate level with precision ground vial mounted in brass case with instrument black finish.
    Sensitivity: 60 seconds per division (2mm)
    Size: 3.36 inch x .62 inch x .75 inch height with two (2) mounting holes .125 inch diameter located 3.000 inch C to C.

    Quantity Price
    1 - 9 $96.39
    10 - 99 $82.89
    100 - 999 $80.96
    1,000+ $77.11
    Total: $96.39

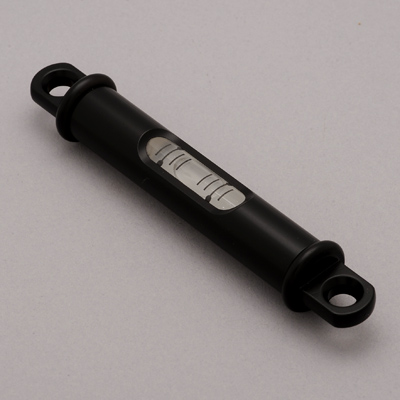

  • 4-3017

    4-3017

    Drawing Available

    General purpose mounted tubular level with a precision ground vial mounted in a brass case with black finish.
    Sensitivity: 60 seconds per division (2mm)
    Size: 3.75 inch x .62 inch diameter with two (2) .228 inch diameter mounting holes located 3.250 inch C to C

    Total: $66.90
  • 4-3032

    4-3032

    Drawing Available

    General purpose mounted tubular level with a precision ground vial mounted in a brass case with black finish.
    Sensitivity: 20 seconds per division (2mm)
    Size: 3.75 inch x .62 inch diameter with two (2) .228 inch diameter mounting holes located 3.250 inch C to C

    Quantity Price
    1 - 9 $88.63
    10 - 99 $76.22
    100+ $74.75
    Total: $88.63

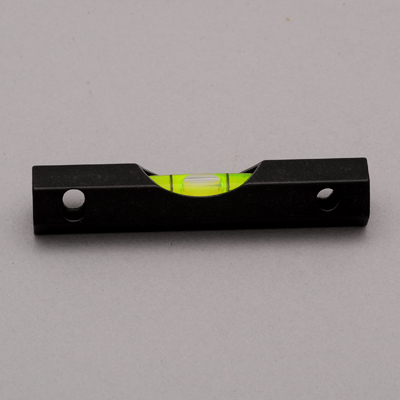

  • 4-3038

    4-3038

    Drawing Available

    Type of Mounting: Horizontal
    Length: 3.000
    Width: .425
    Height: .375
    Housing Material: Aluminum
    Housing Finish: Black Anod.
    Vial Material: Glass
    Sensitivity (Nominal): 45min./.1
    Fluid Color: Yellow
    Mount Hole Size: .140
    Center to Center: 2.500

    Quantity Price
    1 - 9 $12.28
    10 - 99 $10.56
    100+ $10.32
    Total: $12.28
  • 4-3052

    4-3052

    Drawing Available

    Small machinist-type level with rotating cover. The precision ground vial is mounted in a brass case with a black enamel finish.
    Sensitivity: 90 seconds per division (2 mm)
    Size: 3.12 inch x .56 inch diameter with two (2) .152 inch diameter mounting holes located 2.970 inch C to C

    Quantity Price
    1 - 9 $141.90
    10 - 99 $122.03
    100+ $119.19
    Total: $141.90
  • 4-3075

    4-3075

    Drawing Available

    Type of Mounting: Vertical
    Length: 3.000
    Width: .375
    Height: .425
    Housing Material: Hexagonal Aluminum
    Housing Finish: Black Anod.
    Vial Material: Glass
    Sensitivity (Nominal): 45min./.1 inch
    Fluid Color: Yellow
    Mount Hole Size: .140
    Center to Center: 2.500

    Total: $6.19
  • 4-3080

    4-3080

    Drawing Available

    Small mounted tubular level with highly precison ground vial mounted in a brass case with black finish.
    Sensitivity: 10 seconds per division (2mm)
    Size: 3.75 inch x .625 inch diameter with two (2) .228 inch mounting holes located 3.250 inch C to C

    Total: $62.40
  • 4-3500

    4-3500

    Drawing Available

    Type of Mounting: Horizontal
    Length: 98.0mm
    Width: 16.0mm
    Height: 16.0mm
    Housing Material: Acrylic
    Housing Finish: None
    Vial Material: Plastic
    Sensitivity: 35 minutes per 2mm
    Fluid Color: Yellow-green
    Mounting Hole Size: 4.2mm
    Center to Center: 75.7mm

    Total: $2.69
  • 4-4001

    4-4001

    Drawing Available

    Machinist-type level for direct attachment to instruments and equipment. The precision ground vial is encased in a chrome-plated mount and protected by a rotating cover.
    Sensitivity: 120 seconds per division (. 1″)
    Size: 4.81 inch x .62 inch diameter with two (2) .196 inch diameter mounting holes 4.312 inch C to C

    Quantity Price
    1 - 9 $110.89
    10 - 99 $95.37
    100+ $93.15
    Total: $110.89
