Precision & Machinist Levels

Showing all 4 results

  • 4-2012

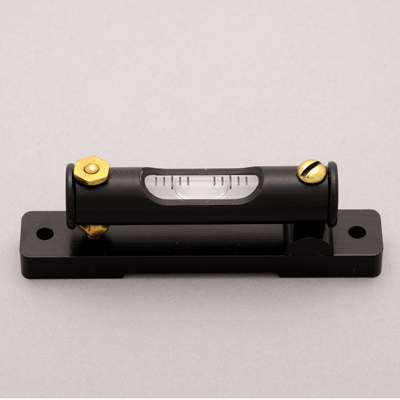

    4-2012

    Drawing Available

    Adjustable plate level with base, fulcrum, nuts and studs. The precision ground vial is mounted in a brass case with instrument black finish.
    Sensitivity: 2 to 4 minutes per division (.060 inch). Overall size: 2.75 inch L x .50 inch W x .75 inch H. Two (2) additional mounting holes in base plate .120 inch diameter located 2.375 inch C to C.

     Quantity Price Each
    1 - 3

    $59.51

    4 - 9 $51.75
    10+ $48.36
    Total: $59.51
  • 4-3064-20

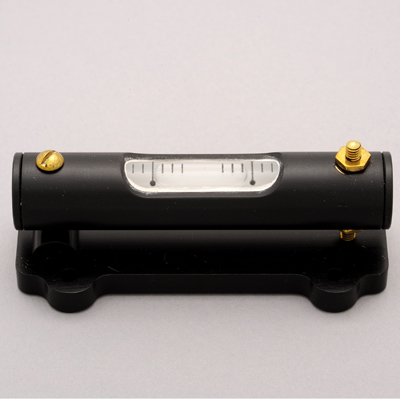

    4-3064-20

    Drawing Available

    Highly sensitive mounted tubular level with adjusting studs, nuts, fulcrum and base with instrument black finish. Sensitivity: 20 seconds per division (2.0mm). Overall size: 3.00 inch L x 1.25 inch W x 1.25 inch H. Reference drawing for other dimensions and position of three (3) mounting holes.

     Quantity Price Each
    1 - 3

    $93.15

    4 - 9 $81.00
    10+ $75.70
    Total: $93.15
  • 6-4000

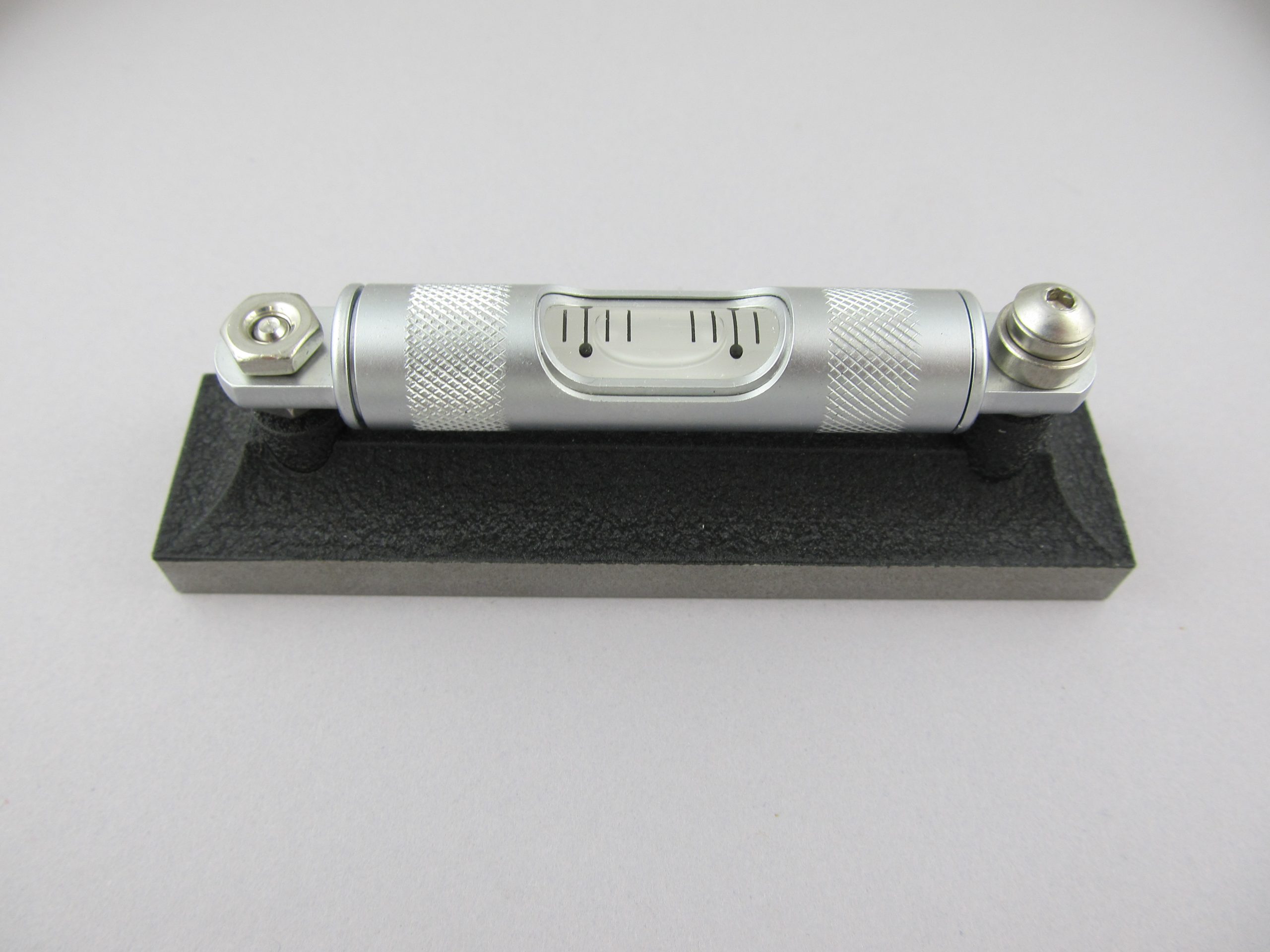

    6-4000

    General purpose, high quality, Machinists’ level with a precision ground vial, 4.00 inch base, and rotating cover to protect the vial when not in use. Base features a groove running the entire length for use on a machine shaft or piping.
    Sensitivity: 240 seconds per division (2.0mm) or equal to a rise in elevation of .015 inch per foot

     Quantity Price Each
    1+

    $98.00

    Total: $98.00
  • 6-8000

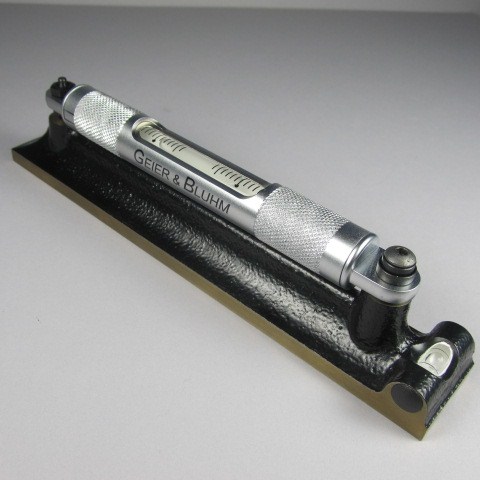

    6-8000

    Machinists’ Level

    Certified High-quality Machinists’ level with a precision ground main vial, cross test level and an 8.00 inch base.

    • Sensitivity: 30 seconds per division (2.0mm) equal to a rise in elevation of .0014 inch per foot.
    • Rotating cover to protect the main vial when not on use.
    • Base features a cross test level and a groove running the entire length for use on a machine shaft or piping.
    • Each level is supplied with a Certificate of Calibration.
     Quantity Price Each
    1+

    $139.00

    Total: $139.00
