Circular Levels Special Applications

Showing all 5 results

  • 2-04009

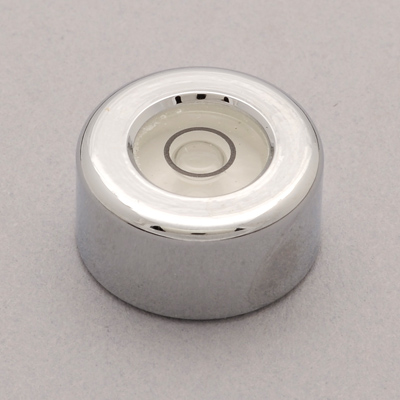

    2-04009

    Drawing Available

    A compact mounted circular level with a chrome brass flangeless case designed for use on cameras, tripods and compact instrument. Two (2) 1-72 inch threaded holes (.125 inch depth) equally spaced on a bolt circle diameter of .540 inch are provided for attachment from underneath.

    Sensitivity: 60 minutes per .1″
    Size: .625 inch diameter x .328 ± .020 inch height.
    Weight: .018 lb. .28 oz. 7.8 grams

    Quantity Discount (%) Price
    1 - 9 $28.52
    10 - 99 14.03 % $24.52
    100+ 16.02 % $23.95
    Total: $28.52
  • 2-06001

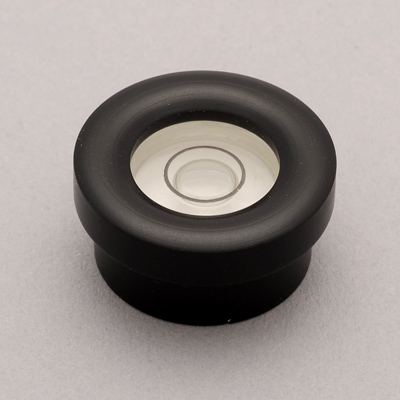

    2-06001

    Drawing Available

    Circular level designed for mounting by inserting into a drilled hole. Barrel is .250 inch deep with a diameter of .734 ± .003 inch. The black finished brass case had an overall diameter of .875 inch and protrudes .187 inch above mounting surface.

    Sensitivity: 130 minutes per .1″
    Weight: .033 lb. .53 oz. 15.0 grams

    Quantity Discount (%) Price
    1 - 9 $18.68
    10 - 99 14.03 % $16.06
    100 - 999 16.01 % $15.69
    1,000+ 20.02 % $14.94
    Total: $18.68
  • 2-08010

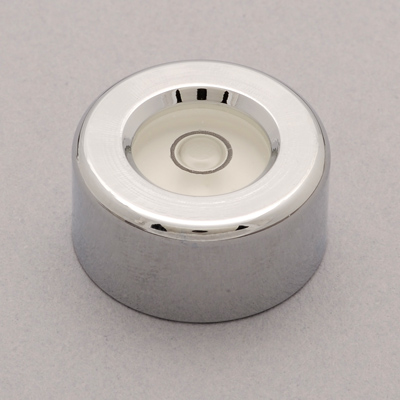

    2-08010

    Drawing Available

    A larger version of 2-04000 with a chrome brass flangeless case. Attachment from underneath by means of two (2) 2-56 inch threaded holes (.125 inch depth) equally spaced on a bolt circle diameter of .635 inch.

    Sensitivity: 45 minutes per .1″
    Size: .750 inch diameter x .375 ± .020 inch height.
    Weight: .031 lb. .49 oz. 14.0 grams

    Quantity Discount (%) Price
    1 - 9 $17.90
    10 - 99 14.02 % $15.39
    100+ 15.98 % $15.04
    Total: $17.90
  • 2-08501

    2-08501

    Drawing Available

    Easy-Mount Circular Level – Multi-purpose level with clear anodized aluminum case and special mounting disc. Simply secure the mounting disc in the desired position and thread the level housing into place.

    Sensitivity: 45 minutes per .1″
    Size: .812 inch diameter x .562 inch height.
    (Includes 6-32 x 1/4 pan head, Phillips machine screw for mounting)
    Weight: .021 lb. .34 oz. 9.6 grams

    Quantity Discount (%) Price
    1 - 9 $12.44
    10 - 99 13.99 % $10.70
    100 - 999 16 % $10.45
    1,000+ 20.02 % $9.95
    Total: $12.44
  • 2-10018

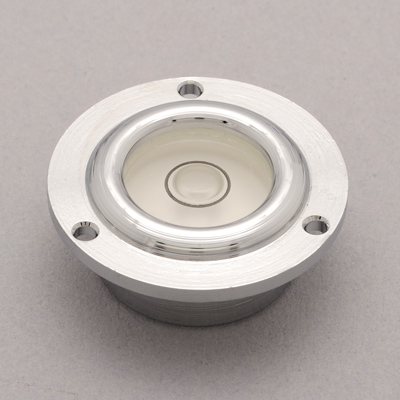

    2-10018

    Drawing Available

    Flush mounting type level designed for embedding into a .687 inch diameter hole. Three (3) .070 inch diameter holes equally spaced on a bolt circle of .883 inch diameter are provided for attachment. The chrome brass case has an overall diameter of 1.000 inch and protrudes .125 inch above the mounting surface.

    Sensitivity: 45 minutes per .1″
    Weight: .023 lb. .37 oz. 10.5 grams.

    Quantity Discount (%) Price
    1 - 9 $19.37
    10 - 99 13.99 % $16.66
    100 - 999 16 % $16.27
    1,000+ 19.98 % $15.50
    Total: $19.37
