Tubular Levels

Showing 1–9 of 27 results

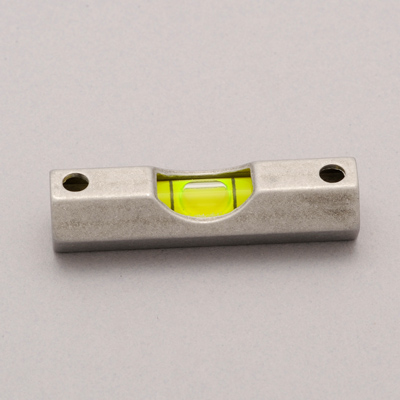

  • 4-1006

    4-1006

    Drawing Available

    Type of Mounting: Horizontal
    Length: 1.500
    Width: .425
    Height: .375
    Housing Material: Aluminum
    Housing Finish: None
    Vial Material: Glass
    Sensitivity (Nominal): 45min./.1
    Fluid Color: Yellow
    Mount Hole Size: .128
    Center to Center: 1.250

    limited supply

    Call for pricing and availability

    Quantity Discount (%) Price
    1 - 9 $15.01
    10 - 99 13.99 % $12.91
    100 - 999 15.99 % $12.61
    1,000+ 19.99 % $12.01
    Total: $15.01

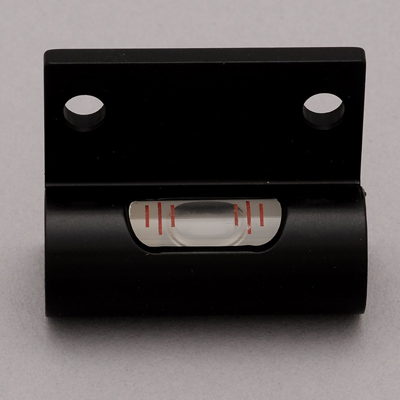

  • 4-1048

    4-1048

    Drawing Available

    Mounted tubular level with instrument black finish.
    Sensitivity: 150 seconds per .1 inch (.050 inch spacing between division).
    Size: 1.25 inch W x 1.00 inch H x .59 inch D. Two (2) .166 inch diameter mounting holes located .938 inch C to C. No provision for adjustment.

    Quantity Discount (%) Price
    1 - 9 $71.76
    10 - 99 13.99 % $61.72
    100+ 16 % $60.28
    Total: $71.76

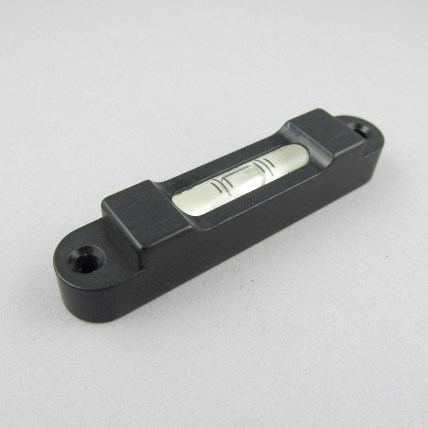

  • 4-2003

    4-2003

    Drawing Available

    Rugged plate level using anodized aluminum case with black finish.
    Sensitivity: 8 to 15 minutes per division (.050″)
    Size: 2.93 inch x .56 inch x .56 inch height with two (2) mounting holes .156 inch diameter located 2.56 inch C to C

    Quantity Discount (%) Price
    1 - 9 $31.68
    10 - 99 13.98 % $27.25
    100 - 999 15.97 % $26.62
    1,000+ 19.98 % $25.35
    Total: $31.68

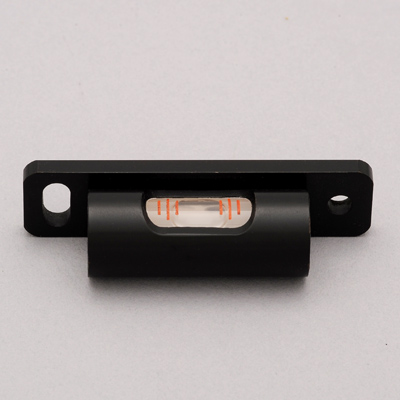

  • 4-2008

    4-2008

    Drawing Available

    Mounted tubular level with brass case and instrument black finish.
    Sensitivity: 150 seconds per .1 inch (.050 inch spacing between division).
    Size: 2.00 inch L x .50 inch H x .62 inch D. Two (2) mounting holes located 1.625 inch C to C, one .147 inch diameter and one elongated .147 inch x .336 inch for adjustment purposes.

    Quantity Discount (%) Price
    1 - 9 $72.08
    10 - 99 14 % $61.99
    100 - 999 16 % $60.55
    1,000+ 19.99 % $57.67
    Total: $72.08

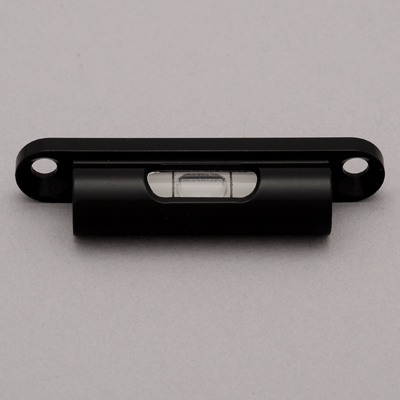

  • 4-2009

    4-2009

    Drawing Available

    Mounted tubular level with instrument black finish.
    Sensitivity: 35 minutes per .1 inch.
    Size: 2.00 inch L x .37 inch H x .50 inch D. Two (2) countersunk mounting holes .136 inch diameter located 1.687 inch C to C. No provision for adjustment.

    Quantity Discount (%) Price
    1 - 9 $75.42
    10 - 99 14 % $64.86
    100 - 999 16 % $63.35
    1,000+ 20.01 % $60.33
    Total: $75.42

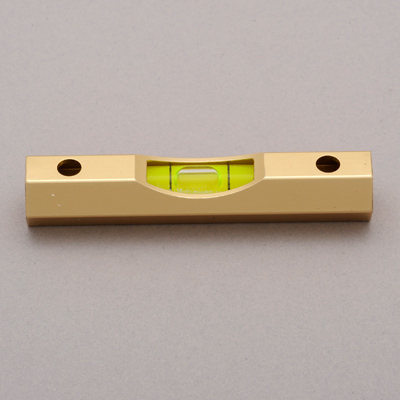

  • 4-2027

    4-2027

    Drawing Available

    Type of Mounting: Horizontal
    Length: 2.000
    Width: .425
    Height: .375
    Housing Material: Aluminum
    Housing Finish: Gold Anod.
    Vial Material: Gladd
    Sensitivity (Nominal): 45min./.1
    Fluid Color: Yellow
    Mount Hole Size: .140
    Center to Center: 1.500

    Quantity Discount (%) Price
    1 - 9 $24.45
    10 - 99 13.99 % $21.03
    100 - 999 15.99 % $20.54
    1,000+ 18.36 % $19.96
    Total: $24.45

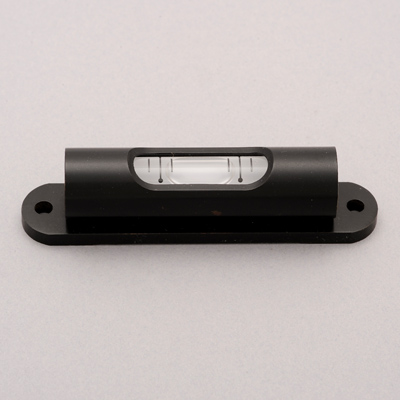

  • 4-2028

    4-2028

    Drawing Available

    Small sensitive plate level with precision ground tubular vial and black finish.
    Sensitivity: 30 seconds per division (2mm)
    Size: 2.50 inch x .50 inch x .62 inch height with two (2) .125 inch diameter mounting holes located 2.187 inch C to C.

    Quantity Discount (%) Price
    1 - 9 $99.42
    10 - 99 14 % $85.50
    100 - 999 15.99 % $83.52
    1,000+ 20 % $79.54
    Total: $99.42

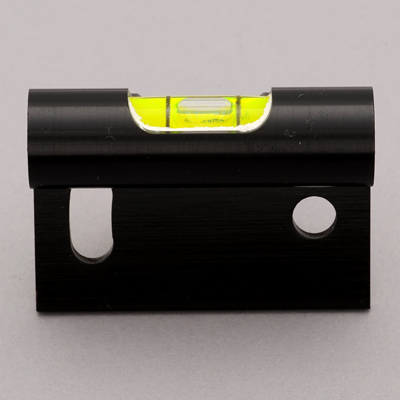

  • 4-2029

    4-2029

    Drawing Available

    Adjustable mounted tubular level furnished in brass case with instrument black finish.
    Sensitivity: 30 to 50 minutes per .1 inch (yellow-green fluid).
    Size: 1.50 inch W x 1.09 inch H x .53 inch D. Two (2) holes .196 inch diameter located 1.000 inch C to C, one elongated for adjustment purposes.

    Quantity Discount (%) Price
    1 - 9 $58.19
    10 - 99 14.01 % $50.04
    100+ 16 % $48.88
    Total: $58.19

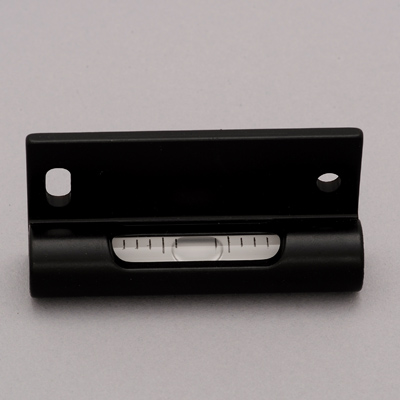

  • 4-2031

    4-2031

    Drawing Available

    Multi-division vial mounted in brass case with instrument black finish.
    Sensitivity: 9 to 11 minutes per division (2mm).
    Size: 2.00 inch W x 1.00 inch H x .53 inch D. Two (2) mounting holes 1.625 inch C to C, one .156 inch diameter and one elongated .156 inch x .312 inch for adjustment purposes.

    Quantity Discount (%) Price
    1 - 9 $61.94
    10 - 99 14 % $53.27
    100+ 16 % $52.03
    Total: $61.94
