Showing 46–54 of 68 results

  • 4-2028

    4-2028

    Drawing Available

    Small sensitive plate level with precision ground tubular vial and black finish.
    Sensitivity: 30 seconds per division (2mm)
    Size: 2.50 inch x .50 inch x .62 inch height with two (2) .125 inch diameter mounting holes located 2.187 inch C to C.

     Quantity Price Each
    1 - 9

    $45.82

    10 - 99 $38.18
    100+ $35.68
    Total: $45.82
  • 4-2029

    4-2029

    Drawing Available

    Adjustable mounted tubular level furnished in brass case with instrument black finish.
    Sensitivity: 30 to 50 minutes per .1 inch (yellow-green fluid).
    Size: 1.50 inch W x 1.09 inch H x .53 inch D. Two (2) holes .196 inch diameter located 1.000 inch C to C, one elongated for adjustment purposes.

     Quantity Price Each
    1 - 9

    $22.60

    10 - 99 $18.83
    100+ $17.60
    Total: $22.60
  • 4-2031

    4-2031

    Drawing Available

    Multi-division vial mounted in brass case with instrument black finish.
    Sensitivity: 9 to 11 minutes per division (2mm).
    Size: 2.00 inch W x 1.00 inch H x .53 inch D. Two (2) mounting holes 1.625 inch C to C, one .156 inch diameter and one elongated .156 inch x .312 inch for adjustment purposes.

     Quantity Price Each
    1 - 9

    $44.90

    10 - 99 $38.61
    100+ $37.71
    Total: $44.90
  • 4-2050

    4-2050

    Drawing Available

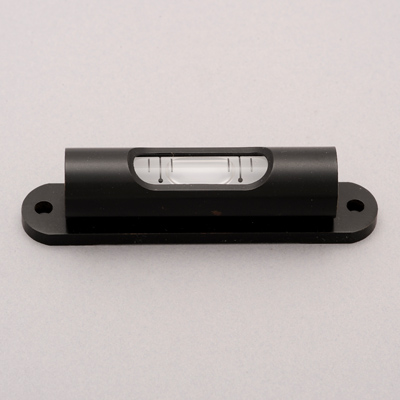

    Small sensitive plate levelwith precision ground tubular vial and black finish.
    Sensitivity: 60 seconds per division (2mm)
    Size: 2.50 inch x .50 inch x .62 inch height with two (2) .125 inch diameter mounting holes located 2-.187 inch C to C.

     Quantity Price Each
    1 - 9

    $77.92

    10 - 99 $67.01
    100+ $65.46
    Total: $77.92
  • 4-2060

    4-2060

    Drawing Available

    4-2060 Inexpensive mounted tubular level using hexagonal aluminum case with black anodized finish.
    Sensitivity: 30 to 50 minutes per .1 inch (yellow-green fluid).
    Size: 2.00 inch x .375 inch hexagonal. Two (2) .140 inch diameter mounting holes located 1.50 inch C to C, one elongated for adjustment.

     Quantity Price Each
    1 - 9

    $8.61

    10 - 99 $7.40
    100 - 999 $7.23
    1000+ $6.89
    Total: $8.61
  • 4-2503

    4-2503

    Drawing Available

    Type of Mounting: Horizontal
    Length: 2.93
    Width: .56
    Height: .56
    Housing Material: Lexan
    Housing Finish: None
    Vial Material: Glass
    Sensitivity: 8 to 15 minutes per division (.050″)
    Fluid Color: Clear
    Mount Hole Size: .156
    Center to Center: 2.56

     Quantity Price Each
    1 - 9

    $8.06

    10 - 99 $6.93
    100 - 999 $6.77
    1000+ $6.44
    Total: $8.06
  • 4-2504

    4-2504

    Drawing Available

    Type of Mounting: Horizontal
    Length: 2.93
    Width: .56
    Height: .56
    Housing Material: Lexan
    Housing Finish: None
    Vial Material: Plastic
    Sensitivity (Nominal): 45min./.1
    Fluid Color: Yellow
    Mount Hole Size: .156
    Center to Center: 2.56

     Quantity Price Each
    1 - 9

    $7.71

    10 - 99 $6.63
    100 - 999 $6.47
    1000+ $6.17
    Total: $7.71
  • 4-2506

    4-2506

    Type of Mounting: Horizontal
    Length: 70.0mm
    Width: 15.0mm
    Height: 17.5mm
    Housing Material: Acrylic
    Housing Finish: None
    Vial Material: Plastic
    Sensitivity (Nominal): 35 minutes per 2mm
    Fluid Color: Yellow-green
    Mounting Hole Size: 4.2mm
    Center to Center: 55.0mm

     Quantity Price Each
    1 - 9

    $2.69

    10 - 99 $2.07
    100 - 999 $1.84
    1000+ $1.75
    Total: $2.69
  • 4-2511

    4-2511

    Drawing Available

    Type of Mounting: Horizontal
    Length: 56.0mm
    Width: 15.0mm
    Height: 15.0mm
    Housing Material: Acrylic
    Housing Finish: None
    Vial Material: Plastic
    Sensitivity: 35 minutes per 2mm
    Fluid Color: Yellow-green
    Mounting Hole Size: 4.2mm
    Center to Center: 42.5mm

     Quantity Price Each
    1 - 9

    $2.54

    10 - 99 $1.95
    100 - 999 $1.72
    1000+ $1.64
    Total: $2.54
