Mounted Tubular Levels

Showing all 9 results

  • 4-2003

    4-2003

    Drawing Available

    Rugged plate level using anodized aluminum case with black finish.
    Sensitivity: 8 to 15 minutes per division (.050″)
    Size: 2.93 inch x .56 inch x .56 inch height with two (2) mounting holes .156 inch diameter located 2.56 inch C to C

     Quantity Price Each
    1 - 9

    $19.64

    10 - 99 $15.11
    100 - 999 $13.43
    1000+ $12.79
    Total: $19.64
  • 4-3017

    4-3017

    Drawing Available

    General purpose mounted tubular level with a precision ground vial mounted in a brass case with black finish.
    Sensitivity: 60 seconds per division (2mm)
    Size: 3.75 inch x .62 inch diameter with two (2) .228 inch diameter mounting holes located 3.250 inch C to C

     Quantity Price Each
    1 - 9

    $40.80

    10 - 99 $34.00
    100+ $31.78
    Total: $40.80
  • 4-3032

    4-3032

    Drawing Available

    General purpose mounted tubular level with a precision ground vial mounted in a brass case with black finish.
    Sensitivity: 20 seconds per division (2mm)
    Size: 3.75 inch x .62 inch diameter with two (2) .228 inch diameter mounting holes located 3.250 inch C to C

     Quantity Price Each
    1 - 9

    $44.25

    10 - 99 $36.88
    100+ $34.47
    Total: $44.25
  • 4-3052

    4-3052

    Drawing Available

    Small machinist-type level with rotating cover. The precision ground vial is mounted in a brass case with a black enamel finish.
    Sensitivity: 90 seconds per division (2 mm)
    Size: 3.12 inch x .56 inch diameter with two (2) .152 inch diameter mounting holes located 2.970 inch C to C

     Quantity Price Each
    1 - 9

    $51.30

    10 - 99 $42.75
    100+ $39.95
    Total: $51.30
  • 4-3080

    4-3080

    Drawing Available

    Small mounted tubular level with highly precison ground vial mounted in a brass case with black finish.
    Sensitivity: 10 seconds per division (2mm)
    Size: 3.75 inch x .625 inch diameter with two (2) .228 inch mounting holes located 3.250 inch C to C

     Quantity Price Each
    1 - 9

    $62.40

    10 - 99 $54.26
    100+ $50.71
    Total: $62.40
  • 4-4001

    4-4001

    Drawing Available

    Machinist-type level for direct attachment to instruments and equipment. The precision ground vial is encased in a chrome-plated mount and protected by a rotating cover.
    Sensitivity: 120 seconds per division (. 1″)
    Size: 4.81 inch x .62 inch diameter with two (2) .196 inch diameter mounting holes 4.312 inch C to C

     Quantity Price Each
    1 - 9

    $57.46

    10 - 99 $47.88
    100+ $44.75
    Total: $57.46
  • 4-6005

    4-6005

    Drawing Available

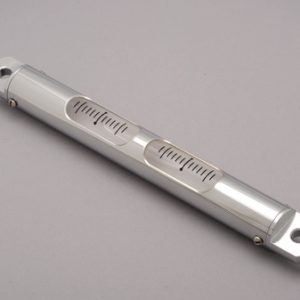

    Highly sensitive precision mounted tubular level with chrome-plated brass case.
    Sensitivity: 8 to 10 seconds per division (2 mm) equivalent to a rise of .0005 inches per foot
    Size: 6.25 inch x .68 inch diameter with two (2) .221 inch diameter mounting holes located 5.694 inch C to C.

     Quantity Price Each
    1 - 3

    $100.84

    4 - 9 $87.69
    10+ $81.95
    Total: $100.84
  • 4-6010

    4-6010

    Drawing Available

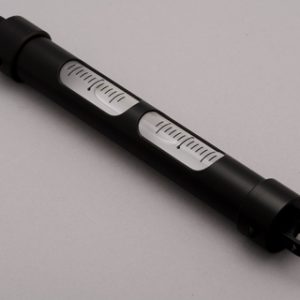

    High precision mounted tubular level used on fine instruments and special machinery. The ground tubular vial has a sensitivity of 4 to 6 seconds per division (2 mm) equivalent to a rise of .0003 inches per foot. The brass case has an instrument black finish with special mounting lugs at each end. One (1) mounting hole is .375 inch diameter and the other elongated for adjustment purposes, located 5.812 inch C to C.
    Size: 6.37 inch x .81 inch diameter

     Quantity Price Each
    1 - 3

    $102.49

    4 - 9 $89.12
    10+ $83.29
    Total: $102.49
  • 4-6011

    4-6011

    Drawing Available

    High precision mounted tubular level used on fine instruments and special machinery. The ground tubular vial has a sensitivity of 8 to 10 seconds per division (2 mm) equivalent to a rise of .0005 inches per foot. The brass case has an instrument black finish with special mounting lugs at each end. One (1) mounting hole is .375 inch diameter and the other elongated for adjustment purposes, located 5.812 inch C to C.
    Size: 6.37 inch x .81 inch diameter

     Quantity Price Each
    1 - 3

    $91.34

    4 - 9 $79.43
    10+ $74.23
    Total: $91.34
