Tubular Levels

Showing 19–26 of 26 results

  • 4-3075

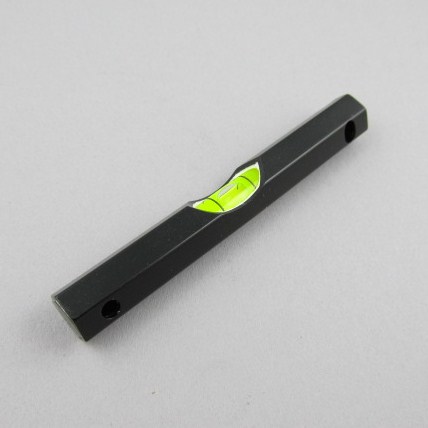

    4-3075

    Drawing Available

    Type of Mounting: Vertical
    Length: 3.000
    Width: .375
    Height: .425
    Housing Material: Hexagonal Aluminum
    Housing Finish: Black Anod.
    Vial Material: Glass
    Sensitivity (Nominal): 45min./.1 inch
    Fluid Color: Yellow
    Mount Hole Size: .140
    Center to Center: 2.500

     Quantity Price Each
    1 - 9

    $6.19

    10 - 99 $4.76
    100 - 999 $4.23
    1000+ $4.03
    Total: $6.19
  • 4-3080

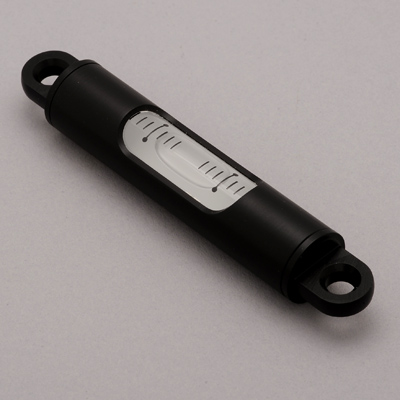

    4-3080

    Drawing Available

    Small mounted tubular level with highly precison ground vial mounted in a brass case with black finish.
    Sensitivity: 10 seconds per division (2mm)
    Size: 3.75 inch x .625 inch diameter with two (2) .228 inch mounting holes located 3.250 inch C to C

     Quantity Price Each
    1 - 9

    $62.40

    10 - 99 $54.26
    100+ $50.71
    Total: $62.40
  • 4-4001

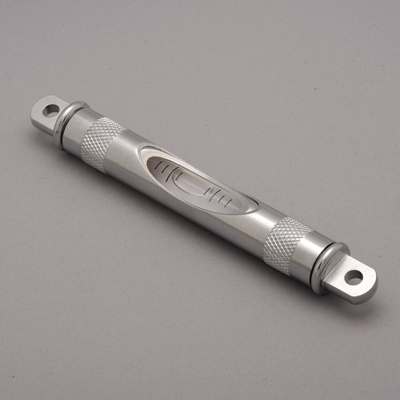

    4-4001

    Drawing Available

    Machinist-type level for direct attachment to instruments and equipment. The precision ground vial is encased in a chrome-plated mount and protected by a rotating cover.
    Sensitivity: 120 seconds per division (. 1″)
    Size: 4.81 inch x .62 inch diameter with two (2) .196 inch diameter mounting holes 4.312 inch C to C

     Quantity Price Each
    1 - 9

    $57.46

    10 - 99 $47.88
    100+ $44.75
    Total: $57.46
  • 4-4023

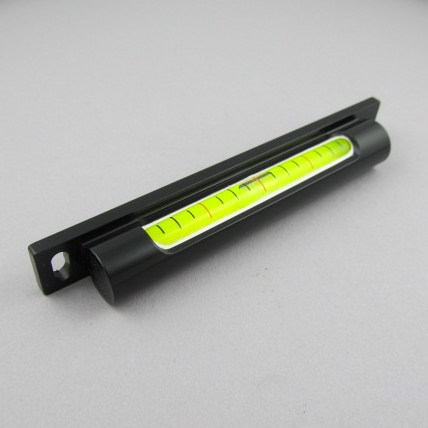

    4-4023

    Drawing Available

    A graduated tubular vial with yellow-green fluid mounted in a brass case with instrument black finish.
    Sensitivity: 10 to 15 minutes per division (.1 inch).
    Size: 4.00 inch L x .50 inch H x .62 inch D. Two (2) mounting holes located 3.625 inch C to C, one .147 inch diameter and one elongated .147 inch x .336 inch for adjustment purposes.

     Quantity Price Each
    1 - 9

    $42.50

    10 - 99 $35.42
    100+ $33.10
    Total: $42.50
  • 4-4037

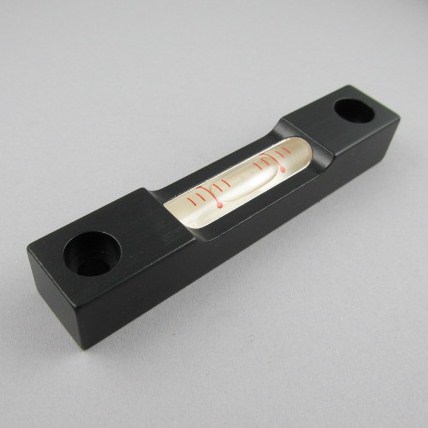

    4-4037

    Drawing Available

    General purpose plate level using anodized aluminum case with black finish.
    Sensitivity: 90 seconds per division (.1″)
    Size: 4.00 inch x .75 inch x .62 inch height with two (2) mounting holes .266 inch diameter located 3.250 inch C to C

     Quantity Price Each
    1 - 9

    $31.08

    10 - 99 $25.90
    100+ $24.21
    Total: $31.08
  • 4-6005

    4-6005

    Drawing Available

    Highly sensitive precision mounted tubular level with chrome-plated brass case.
    Sensitivity: 8 to 10 seconds per division (2 mm) equivalent to a rise of .0005 inches per foot
    Size: 6.25 inch x .68 inch diameter with two (2) .221 inch diameter mounting holes located 5.694 inch C to C.

     Quantity Price Each
    1 - 3

    $100.84

    4 - 9 $87.69
    10+ $81.95
    Total: $100.84
  • 4-6010

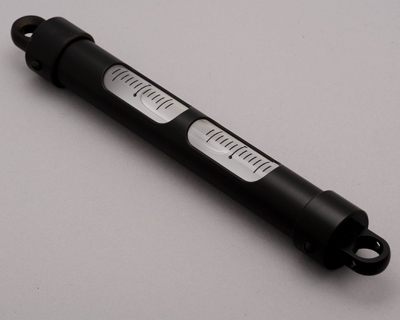

    4-6010

    Drawing Available

    High precision mounted tubular level used on fine instruments and special machinery. The ground tubular vial has a sensitivity of 4 to 6 seconds per division (2 mm) equivalent to a rise of .0003 inches per foot. The brass case has an instrument black finish with special mounting lugs at each end. One (1) mounting hole is .375 inch diameter and the other elongated for adjustment purposes, located 5.812 inch C to C.
    Size: 6.37 inch x .81 inch diameter

     Quantity Price Each
    1 - 3

    $102.49

    4 - 9 $89.12
    10+ $83.29
    Total: $102.49
  • 4-6011

    4-6011

    Drawing Available

    High precision mounted tubular level used on fine instruments and special machinery. The ground tubular vial has a sensitivity of 8 to 10 seconds per division (2 mm) equivalent to a rise of .0005 inches per foot. The brass case has an instrument black finish with special mounting lugs at each end. One (1) mounting hole is .375 inch diameter and the other elongated for adjustment purposes, located 5.812 inch C to C.
    Size: 6.37 inch x .81 inch diameter

     Quantity Price Each
    1 - 3

    $91.34

    4 - 9 $79.43
    10+ $74.23
    Total: $91.34
